Mini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland Type

Brand Name : CHANGLIN/SINOMACH

Model Number : GT220

Place of Origin : CHINA

MOQ : one unit

Price : usd72000/unit-usd98000/unit

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000 units per year

Delivery Time : 20 working days

Packaging Details : by 40FR

Model : GTY220

Displacement (L) : 14.01

Rated power(kW/rpm) : 175/1800

Max. torque (N.m/rpm) : 1030/1250

Operating weight : 23.5TON

Dimension (no ripper) (mm) : 5390×3735×3350

Ground pressure (MPa) : 0.077

Track gauge (mm) : 2000

Dozing capacity (m³) : 6.4

Blade width (mm) : 3735

Blade height (mm) : 1310

Max. drop below ground (mm) : 540

Track shoe width (mm) : 560

Pitch (mm) : 216

Quantity of track link : 38

Quantity of carrier rollers : 4

Quantity of track rollers : 12

Max. tractor force (KN) : 202

Gradeability : 30°

Forward speed (Km/h) : F1:0-3.6/F2:0-6.5/F3:0-11.2

Reverse speed (Km/h : R1:0-4.3/R2:0-7.7/R3:0-13.2

Name : Crawler Bulldozer Hydraulic System

Contact Now

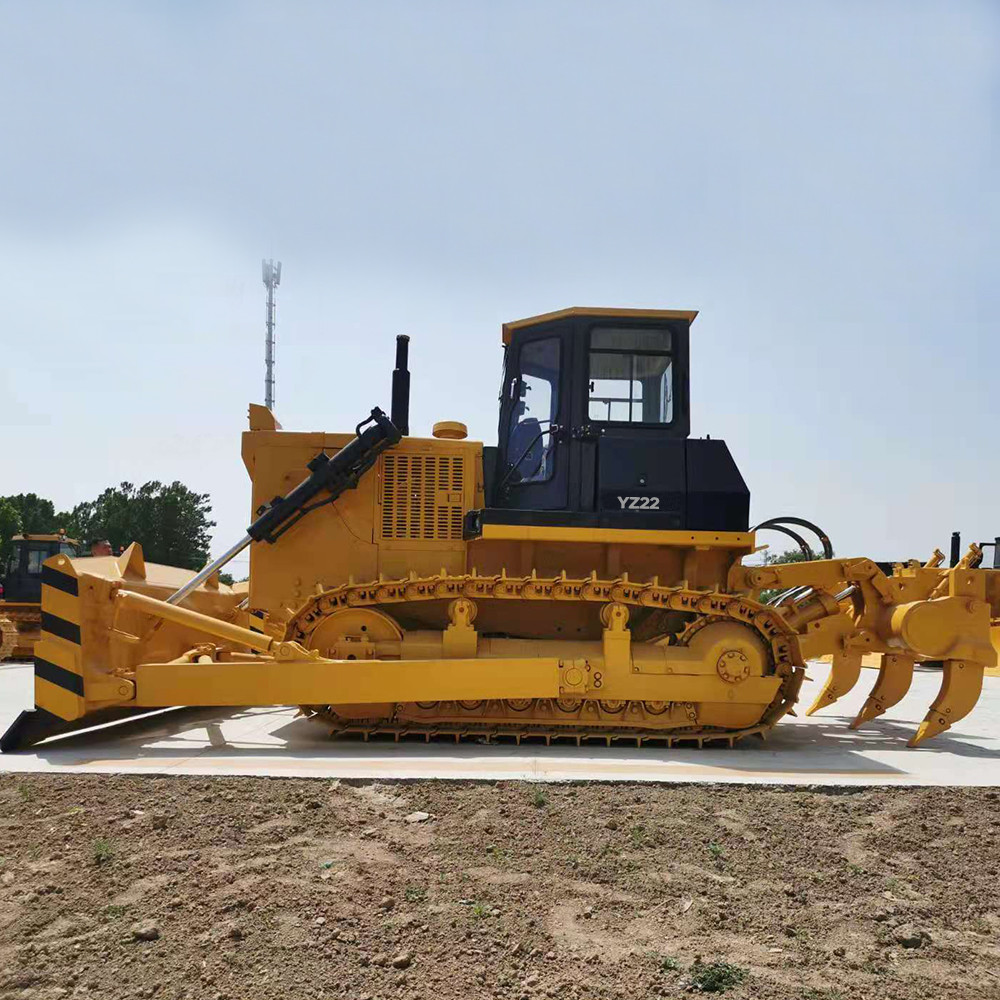

Sinomach Changlin crawler mini bulldozer GTY220 220hp not wetland type with China weichai engine similar D6 D7 D8

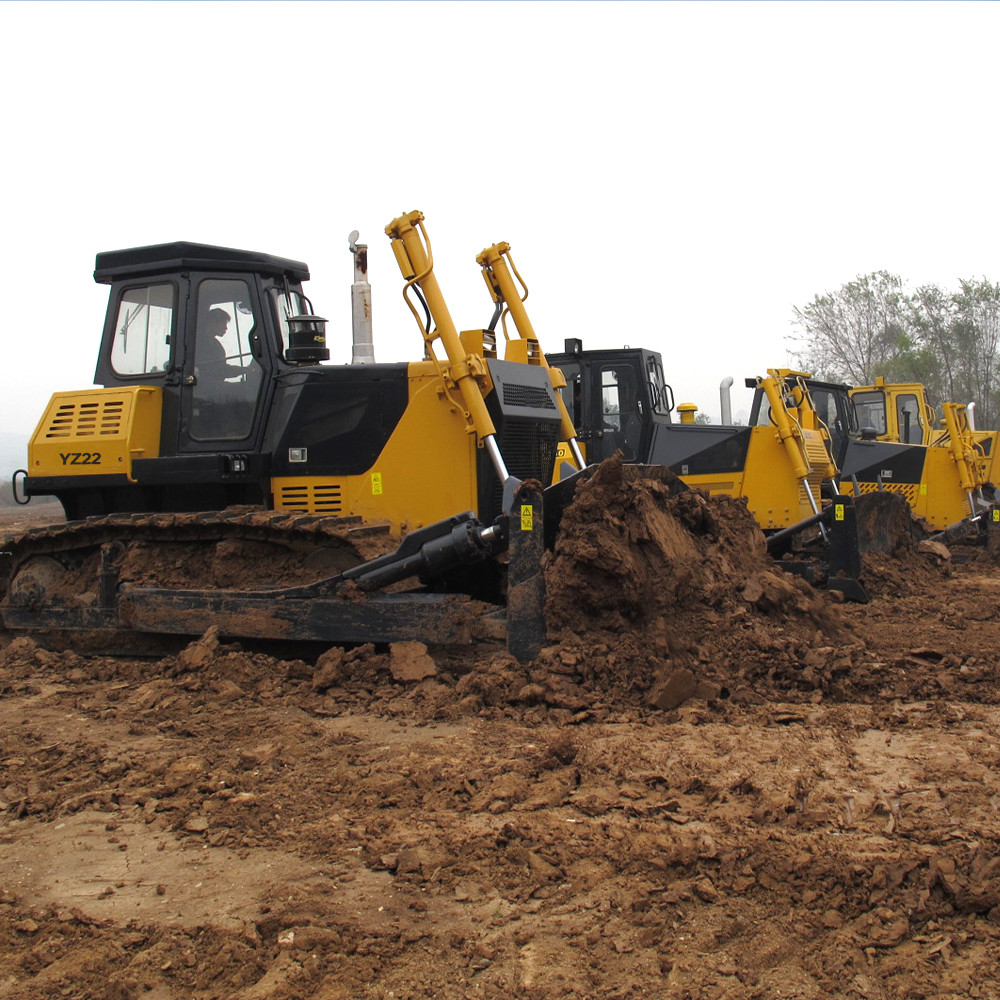

The GTY220 bulldozer is versatile construction equipment used for pushing, digging, excavating and leveling materials such as soil at roads, railways, mines, airports, and other jobsites. It is crucial piece of heavy equipment for construction projects in fields of national defense, mining, urban/rural roads and water conservancy.

Mini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland TypeMini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland Type

Main Performance

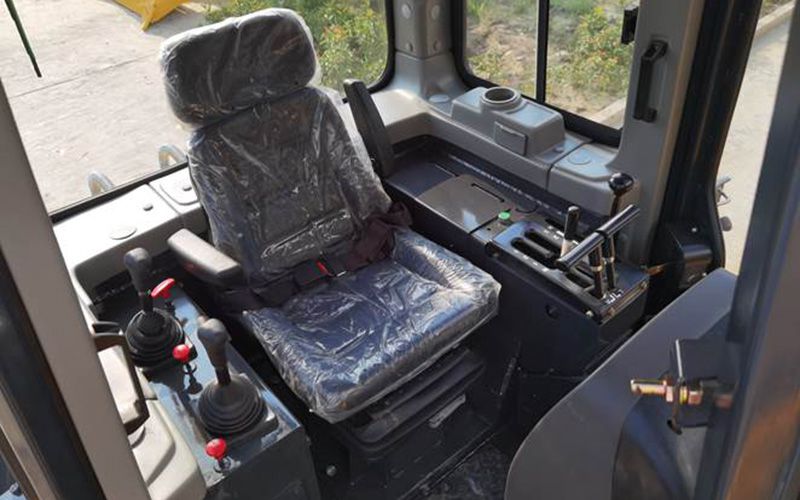

The spacious hexahedral cab with large glass door and windows provide excellent panoramic visibility for more safe and efficient work. In addition, the luxurious interior of the cab gives superior look and soundproofing materials minimize noise levels while providing good heat insulation and sealing effect.

Mini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland Type

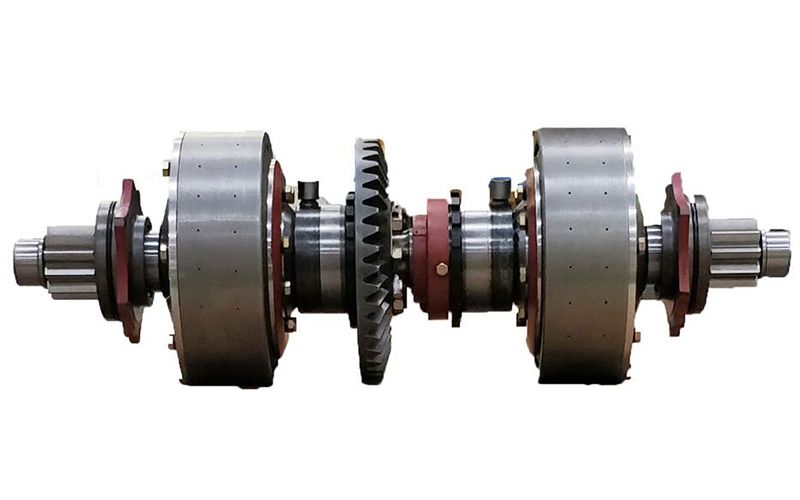

The GTY16 hydraulic bulldozer adopts the central transmission assembly which is a transmission system between the gearbox and the final drive, with the purpose to change the transmission torque and direction. The power is transmitted to steering clutch and final drive gear to enable the bulldozer to travel, steer and brake, providing smooth control and excellent mechanical efficiency.

Mini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland Type

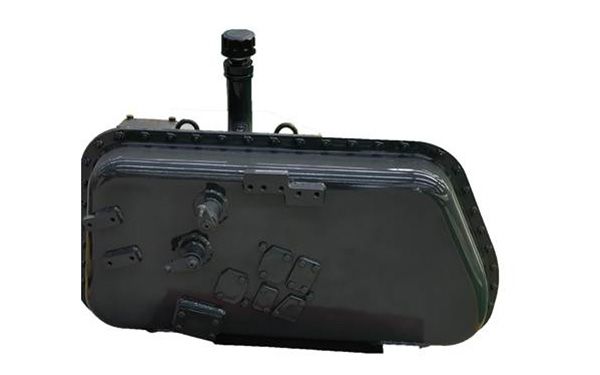

The fuel tank has a built-in valve, featuring compact structure and superior look. The cleanliness reaches NAS9 or higher level, greatly lowering the failure rate of the hydraulic system.

Mini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland Type

The front and rear hoods adopt grill type semi-sealed structure for better heat dissipation. It also provides the comprehensive protection of the engine, and significantly lowers noise level.

Mini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland Type

The wiring harness assembly uses advanced design concept of electrical system and top-notch manufacturing equipment to ensure that all crucial steps such as crimping, assembly and testing are carried out in compliance with the requirements of TS16949 quality management system. It provides a strong guarantee for the reliable operation of bulldozer's electrical system.

Mini Crawler Bulldozer Hydraulic System GTY220 220hp Not Wetland Type

FAQ
Q1.are you original manufacturer?
A:Yes, we Changlin are an official leading manufacturer in construction machinery, We set up joint ventures with korean and
japanese company in 1990s.Q2: what kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q3. Which incoterms 2021 can we work?
A: FOB, CFR, CIF are the usual trade terms
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand
requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
