PY240H Heavy Equipment Road Grader with Flexible Blade Suspension

Name: PY240H Heavy Equipment Road Grader with Flexible Blade Suspension
Brand: changlin
Price: 5000 USD

PY240H Heavy Equipment Road Grader with Flexible Blade Suspension Manufactures

Brand Name : changlin

Model Number : PY240H

Place of Origin : CHINA

MOQ : 1

Price : USD5000-USD10000

Payment Terms : L/C, T/T

Supply Ability : 30units/per month

Delivery Time : 5-8work days

model : PY240H

Engine model : Cummins 6CTA8.3-C240

Rated power : 179kW@2200(rpm)

Dimension (L×W×H) : 9980×3100×3680 (mm)

Operating weight (Standard) : 20000kg

Travelling speed, forward : 4.96/8.55/11.3/19.32/24.25/38.79

Travelling speed, reverse : 4.96/11.3/24.25

Tractive force (f=0.75) : 108KN

Max. steering angle of front wheels : 49°

Max. oscillation angle of front axle : 16°

Max. lean angle of front wheels : 17°

Max. oscillation angle of balance box : 13°

Frame articulation angle : 26°

Min. turning radius using articulation : 8.3m

Maximum lift above ground : 450mm

Maximum grading depth : 500mm

Maximum blade position angle : 90°

Blade cutting angle : 29°~77°

Circle reversing rotation : 360°

Moldboard width × height : 4420×610mm

Contact Now

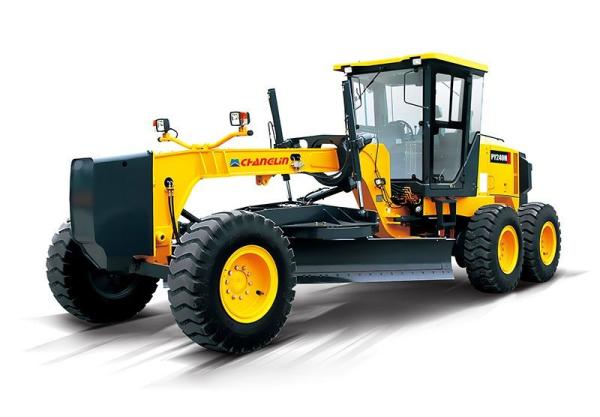

MOTOR GRADERPY240H

PY240H motor grader is equipped with Cummins engine, and adopts box-type chassis frame and advanced transmission to enable it capable of performing heavy-duty tasks. This motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.

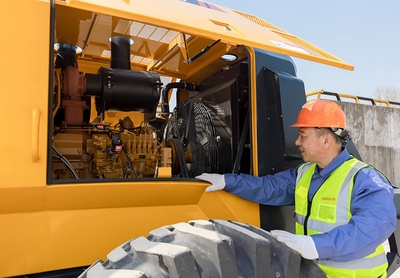

PY240H Heavy Equipment Road Grader with Flexible Blade Suspension High Performance, Low Emission EngineThe use of Cummins turbocharged engine enables the motor grader to achieve excellent productivity and low fuel consumption. The greater work speeds with high horsepower are provided thanks to the precise throttle control offered by the durable mechanical inline fuel injection system.

PY240H Heavy Equipment Road Grader with Flexible Blade Suspension

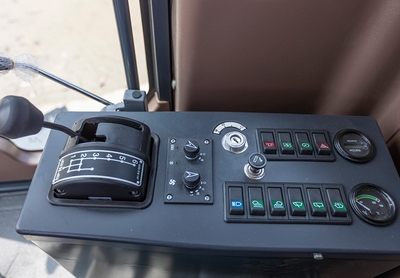

Reliable Transmission with Proven PerformanceThe operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. Paired with ZF-technology power-shift transmission, the Cummins engine makes the motor grader more dependable and simple to use, and suitable for all kinds of working environments.

PY240H Heavy Equipment Road Grader with Flexible Blade Suspension

Robust Chassis FrameBox-type chassis frame and advanced transmission allows it to execute heavy-duty tasks.

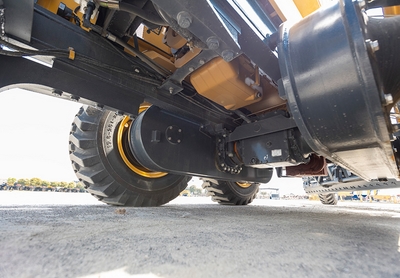

PY240H Heavy Equipment Road Grader with Flexible Blade Suspension Rear Axle Drive System

By using large-size rear drive axle, the reliability of the transmission is significantly improved.

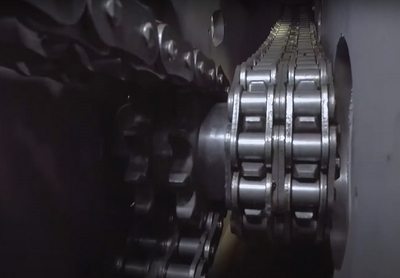

PY240H Heavy Equipment Road Grader with Flexible Blade Suspension Double Row Roller Chain

The double row roller chain has a greater tensile strength (26 tons) over peer and national standards.
